What Is an Disconnector Switch, and How Does It Work?

In the mechanical roar of industrial workshops, behind the metal panels of household electrical boxes, between the photovoltaic arrays of solar power stations—there is an inconspicuous device silently safeguarding our safety, that is the disconnector switch. Understanding the working principle of the isolation switch is the key to ensuring the safe and efficient operation of the power system.

What Is a Disconnector Switch?

A disconnector switch (also known as an isolator switch) is a mechanical device used to completely cut off the power supply during circuit maintenance or inspection. Unlike circuit breakers that can automatically trip in case of overload or short circuit, disconnectors are manually operated. Their main purpose is to provide a visible power-off isolation point and they do not have circuit fault protection functions.

To put it more simply, as long as the disconnector is turned on, the electricity will not flow to the subsequent lines.

Usually, it needs to be operated under no-load conditions to avoid arcs.

Disconnector Switch Type

Based on current mainstream products and technical data, low-voltage disconnector switches can be mainly classified into the following categories:

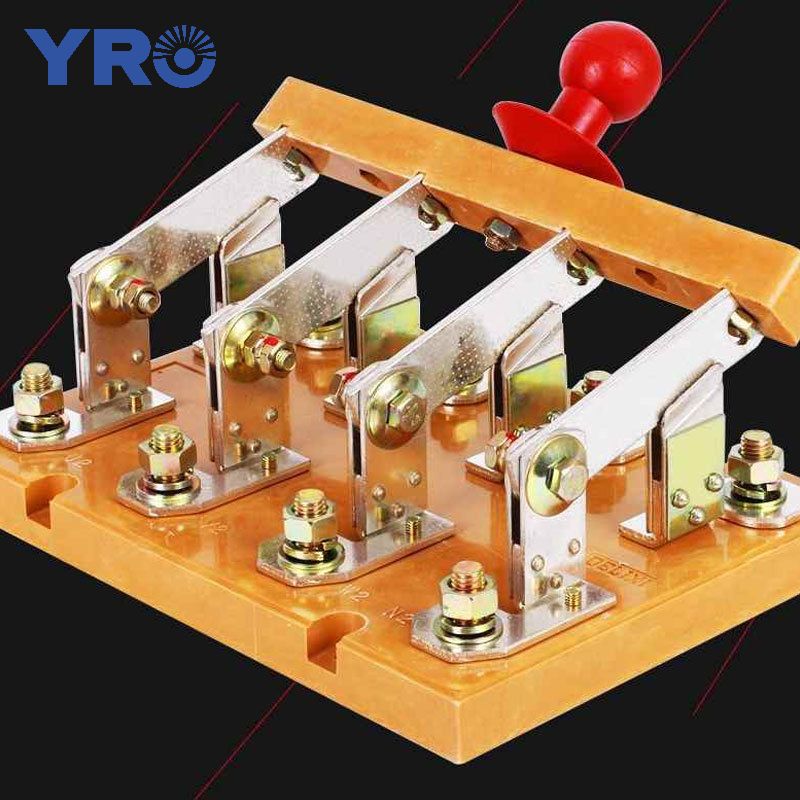

Knife Switch

Features: Simple structure, uses a blade-type contact to disconnect the circuit, suitable for most isolation applications.

Advantages: Low cost, no additional arc-extinguishing device required, intuitive operation.

Disadvantages: Strictly prohibited from operating under load; must be used in conjunction with a circuit breaker.

Applications: Suitable for basic isolation needs in low-voltage distribution cabinets and power distribution boxes.

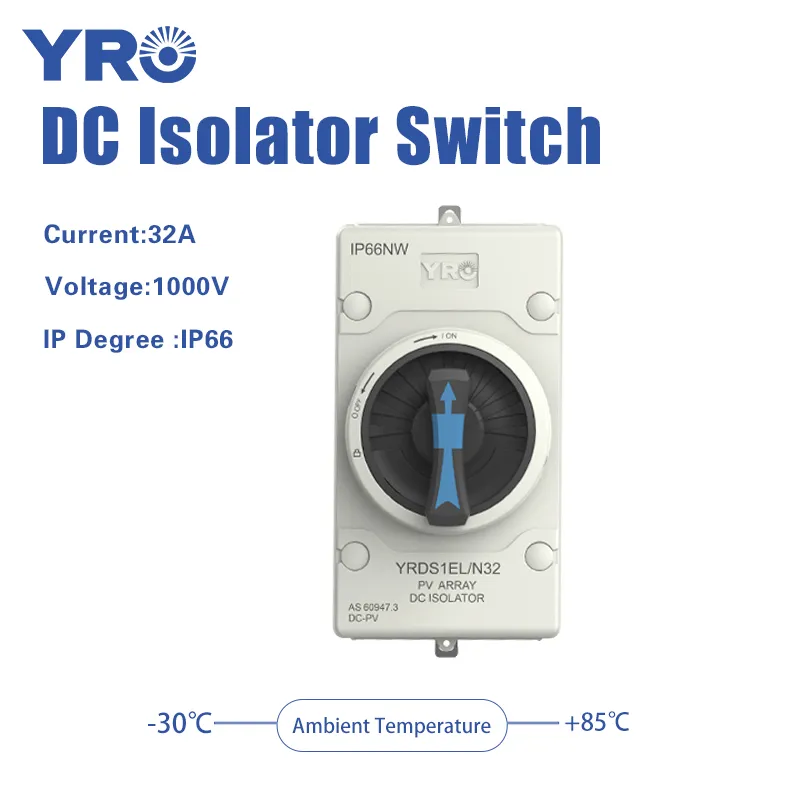

Outdoor Disconnector Switch

Features: Uses composite insulating materials with strong pollution resistance and moisture-proof performance.

Advantages: Suitable for harsh outdoor environments, such as humid, dusty, or high-salt-fog areas.

Disadvantages: Higher price.

Applications: Outdoor distribution boxes, photovoltaic power stations, etc.

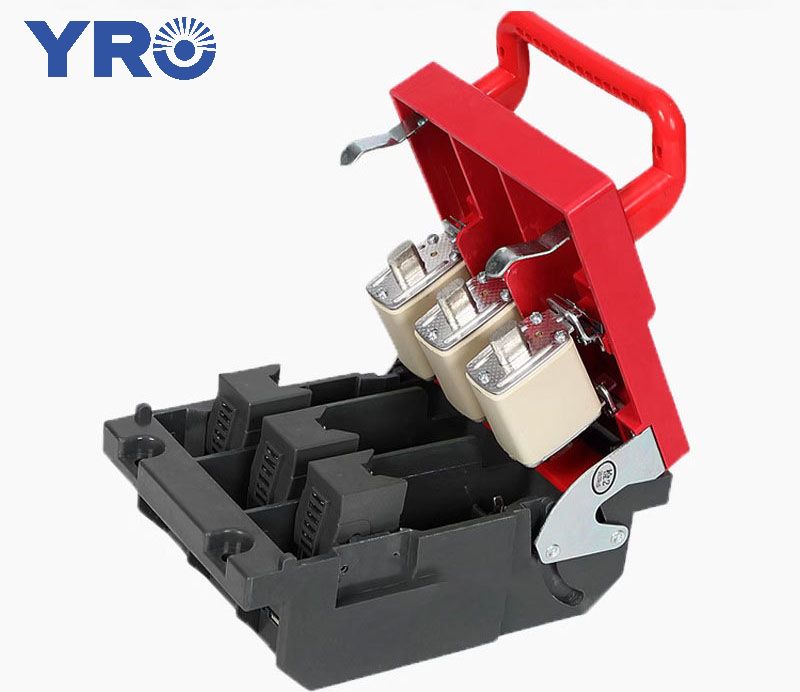

Fused Isolation Switch

Features: Integrated fuse, providing both isolation and short-circuit protection.

Advantages: Offers overload protection to prevent equipment damage.

Disadvantages: Higher cost; requires periodic fuse replacement.

Applications: Industrial equipment or low-voltage distribution systems requiring short-circuit protection.

Smart Disconnector Switch

Features: Integrated remote control, smart diagnostics, and other functions.

Advantages: Supports remote operation, improving maintenance efficiency; real-time monitoring of switch status for fault alerts.

Disadvantages: Expensive; relies on network or sensors.

Applications: Smart grids, data centers, and other scenarios with extremely high reliability requirements.

Benefits of Using YRO Isolator Switches

At YRO, we manufacture high-quality disconnector switches with safety and durability in mind. Our products are:

1. Tested to International Standards: It has passed CE and TUV certifications and complies with IEC electrical safety standards.

2. Suitable for Indoor & Outdoor Use: Weather-resistant enclosures and IP-rated protection.

3. Available for OEM Orders: Customized labeling and configurations available.

How to Choose the Right Disconnector Switch?

Choosing the right isolator depends on several factors:

1. Voltage & Current Rating: Ensure the switch supports your system’s load requirements.

2. Number of Poles: Use single-pole for simple circuits and three-pole for 3-phase systems.

3. Environment: For outdoor use, select weatherproof or IP66-rated enclosures.

4. Application: DC isolators for solar, rotary for compact installations, and so on.

Conclusion

Disconnector switches are an essential component of modern electrical systems, ensuring that maintenance can be performed safely and efficiently. Whether you are working on a rooftop PV system, a commercial switchboard, or an industrial plant, using a reliable isolator switch like those from YRO can significantly enhance your system's safety and performance.

Explore our full range of YRO disconnector switches, or contact us to learn how we can support your electrical safety needs.
